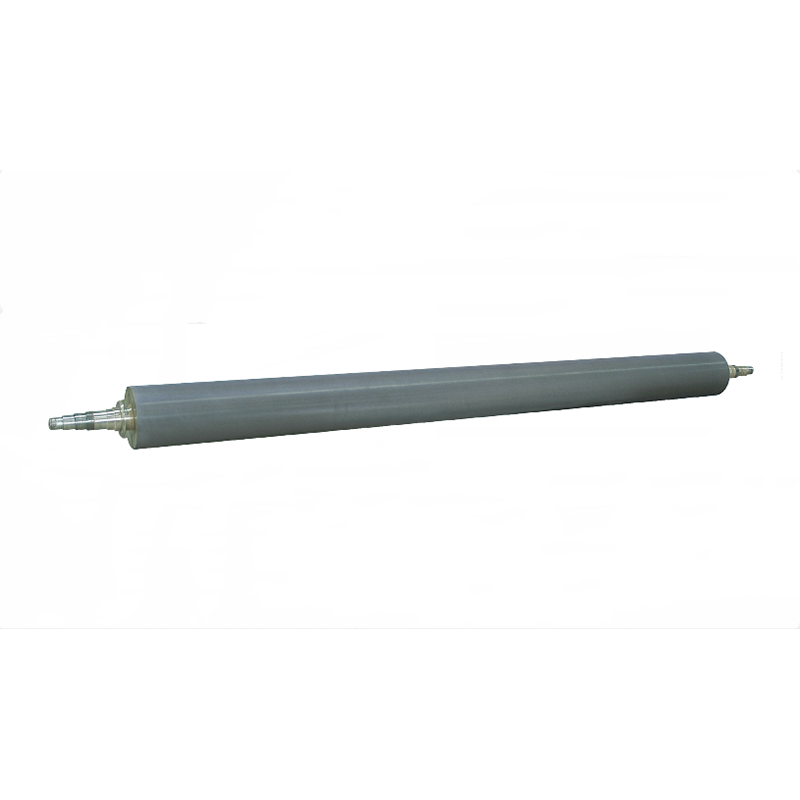

The Corrugated Paper Printing Roller is a specialized printing component engineered to excel in flexographic carton printing and wide-format water-based ink slotting machines. Designed exclusively for the unique demands of corrugated paper substrates, this roller combines industrial-grade durability, precision engineering, and efficient ink transfer to deliver high-quality prints for packaging applications. The ceramic Corrugated Paper Printing Roller features a robust ceramic coating and precision laser engraving, making it ideal for producing shipping cartons, retail packaging, and custom corrugated products. For packaging manufacturers and print shops focused on corrugated applications, this roller is an indispensable tool that balances performance, longevity, and cost-effectiveness.
Built to withstand the rigors of corrugated paper printing, the Corrugated Paper Printing Roller offers exceptional wear-resistant, corrosion-resistant, and high-temperature resistant properties. Its special pure chromium oxide (Cr₂O₃) surface layer—crafted with imported ceramic powder of smaller particles—ensures superior durability, even when used with water-based inks and in continuous high-volume production. This robustness minimizes roller replacements, reduces downtime, and delivers significant cost savings over the long term, making it a smart investment for busy packaging facilities.
Equipped with ALE fiber laser engraving, the roller delivers a large ink transfer capacity—essential for wide-format corrugated carton printing. The smooth mesh walls and flat mesh bottom facilitate rapid ink dilution and uniform ink distribution, ensuring sharp, vibrant prints across large carton surfaces. The roller’s mesh design also prevents ink wastage and ensures consistent coverage, even on textured corrugated substrates, eliminating issues like spotty prints or faded graphics.
The Corrugated Paper Printing Roller is designed for hassle-free maintenance, with easy cleaning capabilities that save valuable production time. The strict ceramic layer plasma spraying process ensures the coating’s ideal porosity (1～2%), thickness, and uniformity—preventing ink buildup and reducing the need for frequent deep cleaning. Additionally, the nickel-chromium alloy underlayer strengthens the bond between the base roller and ceramic coating, ensuring structural stability and an extended service life, even under heavy use.
Specification | Details |
Runout | 0.005～0.01 mm |
Cylindricity | 0.01 mm |
Dynamic Balance Quality Grade | 8g |
Surface Finish | Rz |
Coating Layers | Nickel-chromium alloy underlayer; Pure Cr₂O₃ surface layer |
Porosity | 1～2% |
Coating Hardness | HV1400 |
Bonding Strength | 40—60 Mpa |
Mesh Hole Shapes | Hexagonal, square concave and convex dots, custom designs |
Mesh Arrangement Angles | 60°, 45°, 30°, custom requirements |
Max Engraving Mesh Count | 2000 L/in |
The Corrugated Paper Printing Roller leverages advanced ALE fiber laser engraving technology to create precision mesh structures optimized for corrugated paper. This process ensures consistent mesh hole shapes (hexagonal, square concave and convex dots, etc.) and arrangement angles (60°, 45°, 30°, etc.), allowing for full customization based on specific print designs and substrate thicknesses. The laser engraving also guarantees smooth mesh walls and a flat bottom, which are crucial for efficient ink transfer and preventing damage to delicate corrugated surfaces.
To achieve a durable, high-performance coating, the roller undergoes a rigorous plasma spraying process. This technique ensures the ceramic layer’s porosity, thickness, and uniformity—key for retaining water-based inks and delivering consistent prints on corrugated substrates. The use of imported ceramic powder with smaller particles enhances the coating’s wear resistance and longevity, making it ideal for continuous wide-format printing. The nickel-chromium alloy underlayer is applied to ensure a strong bond between the base roller and ceramic coating, with a bonding strength of 40—60 Mpa, ensuring structural integrity even in high-pressure printing environments.
The Corrugated Paper Printing Roller is specifically designed for:
Flexographic carton printing (shipping cartons, retail packaging, gift boxes)
Wide-format water-based ink slotting machines
Custom corrugated product printing (promotional displays, packaging inserts)
It excels in printing on various corrugated paper grades, including single-wall, double-wall, and triple-wall corrugated boards, delivering consistent results regardless of substrate texture or thickness.
This roller is fully compatible with standard flexographic carton printing machines and wide-format water-based ink slotting machines, ensuring easy integration into existing production lines. Whether upgrading your current equipment or investing in new machinery, the Corrugated Paper Printing Roller offers seamless compatibility, reducing setup time and maximizing operational efficiency. It is optimized for use with water-based inks, the preferred choice for eco-friendly corrugated packaging.
Elevate your corrugated carton printing with a roller that combines industrial-grade durability, precision, and efficiency. The Corrugated Paper Printing Roller is the perfect choice for packaging manufacturers seeking to improve print quality, reduce costs, and increase productivity. Contact us now to Inquire about custom specifications, get a personalized quote, or Add to Basket to order your roller today. Our team of printing experts is here to assist you in finding the ideal solution for your specific needs. Don’t compromise on quality—invest in a roller that delivers consistent, professional results for every corrugated printing project!
