Manufacturing Excellence: The Precision Behind Shangyun Ceramic Rollers

Introduction of Equipment

Laser Engraving Equipment:

The world's most advanced British ALE fiber laser enaraving eguipment has been introduced with a maximum light rate of 500W. It uses "three beams of light" "multiple Strikes" and "MAD swing technology to generate deeper and smoother cell shapes than ordinary laser engraving that conducive to the uniformity of ink transfer. Combined with the ANICAM cell detection equipment, it ensures the accuracy of ink transfer volume.

Engraving Specifications:
● Screen line range: 50–1500 LPI
● Cell depth: 0.005–0.3 mm
● Diameter range: 25–600 mm
● Screen angle range: 1–89°
● Screen types: Hexagonal, quadrilateral, diagonal, channel-type, and other customized patterns available upon request.

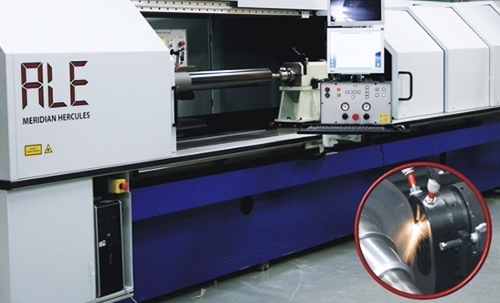

Shangyun Ceramic ALE fiber laser engraving machine for ceramic anilox roller cells

Plasma Spraying Equipment

We utilize the Swiss SULZER triple-cathode plasma spraying system, applying strict processes for plasma thermal spraying of ultra-hard ceramic coatings. This equipment features excellent process stability, high power, and high deposition efficiency, effectively reducing the porosity of the ceramic layer while ensuring thickness and uniformity.

Specifications:

● Materials: Bond coat powder NiCr and ceramic powder Cr₂O₃
● Thickness: 0.20–0.35 mm
● Hardness: HV 1250–1380
● Porosity: ≤ 2%
● Diameter processing range: 20–500 mm
● Plate length processing range: 100–4500 mm

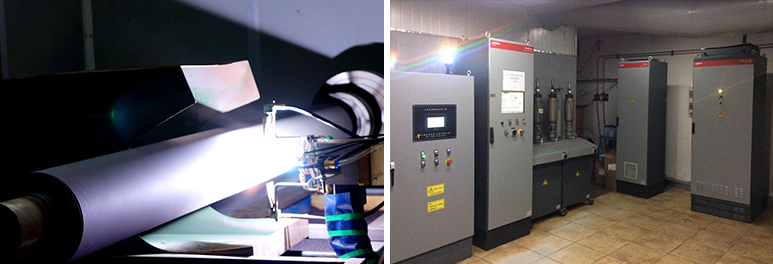

anilox roller factory tour showing laser engraving and plasma spraying production line

Tester

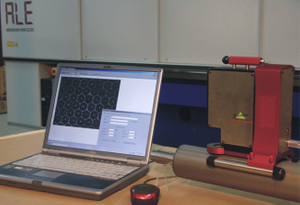

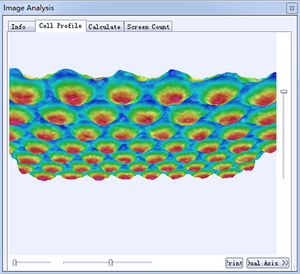

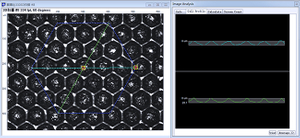

Using the advanced Anicam tester which can accurately measure the volume of cells. cell size, opening size, cell depth, mesh cross-section angle, and generate three-dimensional diagrams, etc.

Manufacturing Execution Capability and Delivery Service

Production Performance

● Mass production is carried out using 12 ALE laser engraving machines and 4 sets of Swiss Sulzer plasma spraying systems.

● Standardized process flow ensures the precision and consistency of each anilox roller.

Delivery Date Service

● Typical delivery time for regular orders (about 15 days, which can be adjusted according to actual conditions).

● Priority scheduling for urgent roller replacement or downtime risk orders (if actually available).

Packaging and Logistics

● Provide safe packaging solutions based on product size and transportation distance.

● Assist domestic and foreign customers in arranging transportation and customs clearance (if you have export experience, please briefly mention it).

Information Communication

● During the production process, progress feedback can be provided to enable customers to clearly understand the production and delivery time nodes.

Factory Tour

Guangdong Shangyun Laser Technology Co., Ltd, as Asia's largest ceramic anilox roller production base, our ceramic anilox rollers undergo 8 strict processing steps to ensure stable quality and meet the printing and coating needs of diverse global customers. From the selection of the base roller to engraving and final product, we have a complete processing flow.

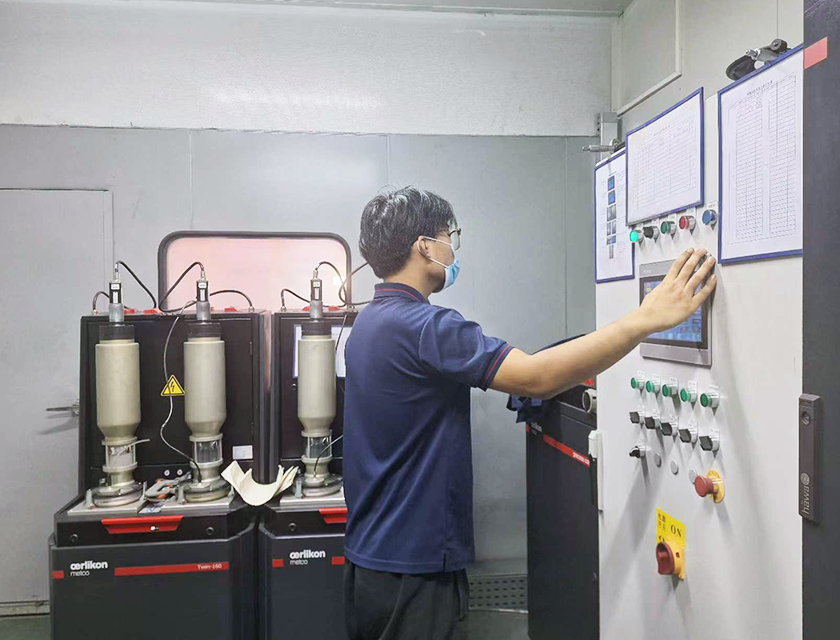

In the machining workshop, the base roller goes through cutting, turning, welding, precision shafting, drilling, precision grinding, keyway milling, dynamic balancing and other processes. After passing the strict inspection, it moves to the spraying and grinding workshop. Our factory has introduced the Swiss Sulzer 3-cathode plasma spraying system, applying a nickel-chromium alloy as the base layer to enhance the bonding between the ceramic layer and the base roller, and a premium chrome oxide ceramic layer.

This high-quality coating and thermal technology ensures a surface hardness of 1300HV-1450HV, making the anilox roller super wear-resistant. A sealing agent is then applied to further enhance coating performance and extend service life. After coating, we take the corundum grinding machine to process the coating surface to guarantee the accuracy, then polishing, to meet the mechanical size requirements, improve the surface finish of the anilox roller.

Next, the anilox roller proceeds to the engraving stage. The company has adopted the world's most advanced British ALE multi-beam, high-power, high-precision engraving machines. Capable of engraving screen counts from 30LPI to 1500LPI . For different products, technologies such as "three-beam," "single-beam multiple strike," and "MAD swing" are used to create deeper and smoother cell structures than ordinary laser engraving, facilitating ink transfer. Combined with ANICAM cell detection equipment, this ensures precise consistent ink transfer volume, reducing waste and increasing printing quality. Smooth cell structures minimize ink residue, reducing maintenance costs.

Meanwhile, we have a professional technical team available to provide you with technical solution and guidance. Based on your requirements, we will recommend the optimal specifications for you. We' re dedicated to deliver stable quality, high-precision products and exceptional services. If you' re hoping to optimize your printing clarity with ceramic anilox rollers and sleeves, just click and talk with us.

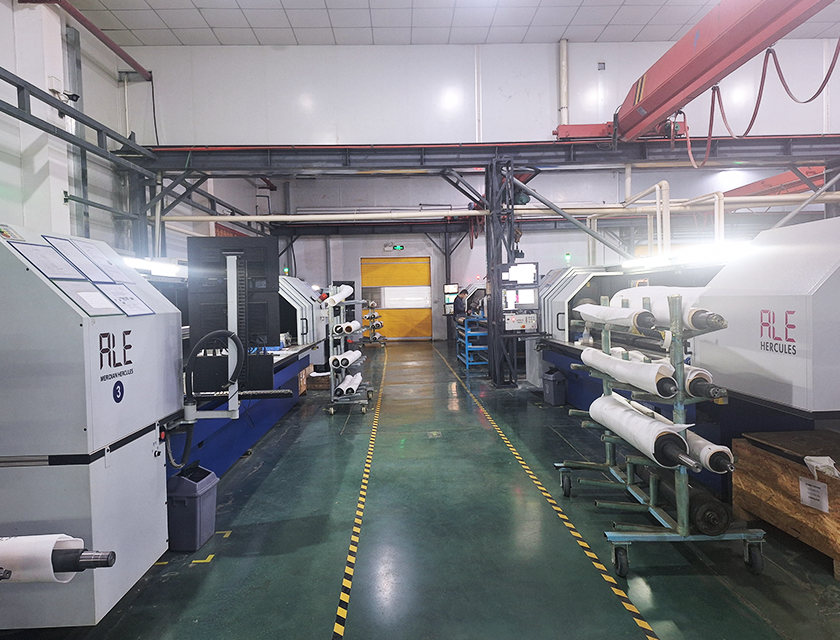

anilox roller production line view with ALE laser engraving machines for OEM manufacturing
