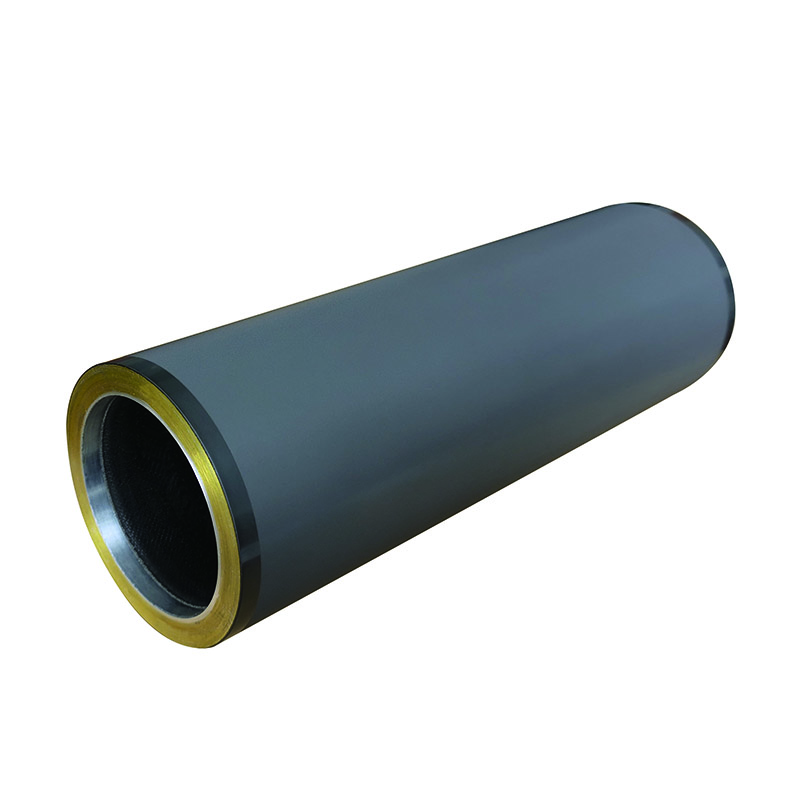

The W&H Ceramic Sleeve is a premium industrial printing component meticulously engineered to integrate seamlessly with Bobst printing machines. Crafted from high-grade special alloy material, this sleeve stands out as a reliable solution for industrial printing operations that demand durability, precision, and cost-efficiency. Designed to address the core pain points of printing professionals—frequent replacements, inefficient ink transfer, and high maintenance costs—the W&H Ceramic Sleeve combines wear resistance, corrosion resistance, and high-temperature resistance into a single high-performance product. Whether used in high-volume production lines or precision printing tasks, it delivers consistent results, reduces downtime, and lowers the total cost of ownership. As a key component for Bobst printing machines, it ensures compatibility and optimal performance, making it a top choice for printing facilities aiming to enhance productivity and output quality.
Elevating your printing capabilities requires components that do more than just function—they must actively enhance your workflow and protect your margins. Our ceramic sleeves are engineered to address the most critical pain points in modern flexography, transforming potential downtime into profitable uptime.
Unmatched Ink Release: The ultra-smooth inner walls of the meticulously engraved cells ensure that every drop of ink is transferred to the plate with zero hesitation, resulting in crisp, high-definition graphics that captivate the end consumer.
Extended Doctor Blade Lifespan: By achieving a flawlessly uniform ceramic topography, the friction against the doctor blade is drastically minimized. This means fewer blade changes, reduced replacement costs, and uninterrupted production runs.
Ergonomic Handling: The sophisticated composite base materials strip away unnecessary weight without sacrificing structural rigidity. This empowers your floor operators to maneuver and install the sleeves safely, reducing workplace strain and accelerating setup times.
Corrosion Immunity: Beneath the exceptionally hard ceramic exterior lies a specially formulated anti-corrosion layer. This protective barrier completely neutralizes the threat of harsh inks and cleaning solvents, safeguarding your investment for years to come.
Vibration Dampening: The inherent properties of the carbon fiber and fiberglass cores absorb kinetic energy during rotation, delivering a buttery-smooth operation that actively prevents chatter marks on your final printed substrate.
The W&H Ceramic Sleeve is built to withstand the harshest printing environments, thanks to its advanced material composition and manufacturing processes. Its wear-resistant and corrosion-resistant properties minimize replacement frequency, eliminating the hassle of frequent downtime for part changes. The use of imported special pure chromium oxide (Cr₂O₃) ceramic powder—with smaller particles—extends the sleeve’s service life significantly compared to standard alternatives. This long-lasting performance directly translates to cost savings, as businesses reduce spending on replacement parts and maintenance labor. For printing facilities operating 24/7, this durability means uninterrupted production and higher operational efficiency.
Equipped with ALE Fiber Laser Engraving technology, the W&H Ceramic Sleeve boasts a large ink transfer capacity that boosts printing productivity. The engraving process creates smooth mesh walls and a flat mesh bottom, ensuring rapid ink dilution and uniform ink distribution across the printing surface. This not only enhances the quality of printed outputs but also simplifies cleaning. Unlike sleeves with uneven surfaces that trap ink and require tedious maintenance, the W&H Ceramic Sleeve can be cleaned quickly, reducing downtime and allowing teams to focus on core production tasks. For busy printing facilities, this efficiency translates to more completed orders and improved customer satisfaction.
High-temperature resistance is a critical feature of the W&H Ceramic Sleeve, making it suitable for high-heat printing operations. It maintains structural stability and performance consistency even in elevated temperature environments, preventing warping or degradation that can compromise print quality. Whether used in industries like packaging, label printing, or commercial printing—where machines run for extended periods—this sleeve remains reliable, ensuring that every print job meets the required standards. Its ability to perform under extreme conditions makes it a versatile solution for a wide range of industrial printing applications.
The W&H Ceramic Sleeve offers flexible mesh design options to meet diverse printing needs. The mesh hole shape includes hexagonal, square concave and convex dots, and can be customized according to specific project requirements. For mesh hole arrangement angle, standard options include 60°, 45°, and 30°, with custom angles available to match unique printing setups. This flexibility ensures that the sleeve can adapt to different print patterns, substrates, and machine configurations, making it a versatile choice for various printing tasks.
Precision is at the core of the W&H Ceramic Sleeve’s design, with strict quality control measures in place to meet industry-leading standards. Key precision parameters include:
| Parameter | Specification |
|---|---|
| Product Name | Ceramic Anilox Sleeve for Bobst Printing Machine |
| Base Material | Lightweight Fiberglass / High-rigidity Carbon Fiber / 45# Steel |
| Surface Material | Chromium Oxide Ceramic (Al2O3, Cr2O3) |
| Surface Coating Thickness | 0.25~0.3mm (single side) |
| Surface Hardness | HV1250~1300 |
| Engraving Technology | Multi-hit Fiber Optic Laser Engraving |
| Screen Ruling | 50~1500 LPI |
| Cell Shape | 60° Hexagon, Tri-helix, S-shape, ART shape |
| Max Length | 5000mm |
| Applicable Equipment | Bobst, W&H, Uteco, Comexi, etc. (CI Flexo Presses) |
| Application Area | Label Printing, Flexible Packaging |
These tight tolerances ensure that the sleeve operates smoothly, minimizing vibration and ensuring consistent print alignment. For precision-critical applications like fine packaging or high-definition labels, this level of accuracy is indispensable.
The sleeve’s coating structure is engineered for optimal performance and bonding strength. The nickel-chromium alloy underlayer enhances the bond between the base roller and the ceramic layer, preventing peeling or separation even under intense use. The special pure Cr₂O₃ surface layer—made from imported ceramic powder—delivers superior hardness (HV1400) and wear resistance. With a porosity of 1～2%, the coating supports engraving up to 2000 L/in mesh, making it suitable for high-detail printing. The bonding strength of 40—60 Mpa ensures long-term stability, even in high-stress printing operations.
The W&H Ceramic Sleeve leverages state-of-the-art ALE Fiber Laser Engraving to achieve precise and consistent mesh structures. This technology ensures that each mesh hole is uniform in size and shape, optimizing ink flow and transfer efficiency. The smooth mesh walls and flat mesh bottom—direct results of this advanced engraving process—are key to the sleeve’s easy cleaning and rapid ink dilution capabilities. Unlike traditional engraving methods that may produce irregular surfaces, laser engraving guarantees high precision, contributing to the sleeve’s overall performance and reliability.
A strict ceramic layer plasma spraying process is employed to ensure the porosity, thickness, and uniformity of the ceramic layer. This process involves heating ceramic powder to a molten state and spraying it onto the base roller, creating a dense, durable coating. The plasma spraying technique ensures that the ceramic layer adheres firmly to the base material, delivering the bonding strength needed for heavy-duty use. By controlling the spraying parameters with precision, the manufacturer ensures that every W&H Ceramic Sleeve meets the same high standards for coating quality, ensuring consistent performance across all units.
The W&H Ceramic Sleeve is specifically designed for use with Bobst printing machines, ensuring perfect compatibility and seamless integration. Bobst machines are renowned for their high speed and precision in industrial printing, and the W&H Ceramic Sleeve is engineered to match these capabilities. Whether replacing an old, worn sleeve or upgrading to a higher-performance option, this product fits seamlessly into Bobst machine setups, requiring no modifications or adjustments. For facilities that rely on Bobst equipment, this compatibility eliminates the risk of mismatched components and ensures optimal machine performance.
Beyond its compatibility with Bobst machines, the W&H Ceramic Sleeve is suitable for a wide range of industrial printing scenarios. It excels in high-volume production lines, precision printing tasks, and applications that require long hours of continuous operation. Industries such as packaging, flexible packaging, label printing, and commercial printing can benefit from its durability, efficiency, and consistent performance. Whether printing on paper, plastic, or other substrates, the sleeve delivers uniform ink transfer and high-quality results, making it a versatile solution for diverse printing needs.
To truly understand the transformative power of this component, one must look at the foundational engineering that drives its performance. Every aspect of its design has been scrutinized and perfected to deliver a competitive edge to your printing facility.
Material & Construction: Utilizing advanced lightweight fiberglass or high-rigidity carbon fiber paired with a precision aluminum shell, this design drastically cuts down rotational inertia. This allows your presses to safely achieve higher speeds while making manual handling effortless and secure for your crew.
Surface Coating & Hardness: We utilize a plasma thermal spraying process to apply a dense Chromium Oxide (Cr2O3) layer over an anti-corrosion base. Reaching a staggering hardness of HV1250 to 1300, this shield offers phenomenal wear resistance, effectively multiplying the lifespan of the sleeve while protecting your doctor blades.
Laser Engraving Technology: Harnessing multi-hit fiber optic lasers, we sculpt deeper cells with glass-like inner walls. Whether your application requires a 60° Hexagon, Tri-helix, or S-shape configuration, this technology guarantees absolute precision in ink metering and flawless release onto the substrate.
Compatibility & Application: Precision-engineered to be a flawless match for industry-leading CI flexo presses, including Bobst, W&H, Uteco, and Comexi. It is the definitive solution for high-speed, wide-web environments specializing in premium label and flexible packaging production.
Quick-Change & Efficiency: Designed to synergize perfectly with air mandrels, the sleeve glides into place on a cushion of compressed air. This ingenious mechanism allows for complete installation or removal in mere seconds, slashing changeover times between jobs and skyrocketing your daily output.
Quality Control & Inspection: Before leaving our facility, every unit undergoes rigorous scrutiny using 3D cell volume testers to map capacity, depth, and angle. Coupled with exhaustive TIR (Total Indicator Reading) mechanical analysis, we guarantee flawless dot consistency and pinpoint registration for your longest print runs.
Sourcing critical press components is a strategic decision that impacts your entire production ecosystem. As a dedicated manufacturer and trusted supplier, we do not merely provide parts; we deliver engineered solutions that drive operational excellence. Our commitment to your success is woven into every product we ship.
Uncompromising Precision: We treat every micron as critical. Our state-of-the-art manufacturing facility operates under the strictest tolerances, ensuring that the product you receive performs identically to the last, guaranteeing repeatable success across all your presses.
Deep Industry Expertise: With years of specialized focus on flexographic technologies, our engineering team understands the nuanced challenges of high-speed printing. We design proactive solutions that prevent issues before they occur on your press floor.
Reliable Volume Fulfillment: We possess the robust infrastructure required to support large-scale operations. Whether you are outfitting a single facility or standardizing components across a global network, we deliver consistently and strictly on schedule.
Rigorous Testing Protocols: We eliminate the guesswork from your procurement. Our exhaustive mechanical and volumetric testing ensures that you never receive a defective unit, protecting your raw materials from waste and your reputation from subpar prints.
Dedicated Technical Support: Our relationship extends far beyond the point of delivery. We provide comprehensive guidance on handling, maintenance, and optimization, ensuring you extract the absolute maximum value and longevity from your investment.
Elevate your Bobst printing machine’s performance with the W&H Ceramic Sleeve—the ultimate combination of durability, precision, and efficiency. Whether you need a standard design or a customized mesh configuration, we’ve got you covered. Enjoy longer service life, lower maintenance costs, and consistent print quality that sets your products apart.
Inquire now to discuss your specific requirements, or add to basket to secure your order today. Our team of technical experts is ready to provide personalized support, from product selection to after-sales service. With fast delivery and reliable customer care, we ensure that you get the most out of your W&H Ceramic Sleeve. Don’t settle for subpar components—invest in a product that delivers results, saves costs, and drives your printing business forward.
