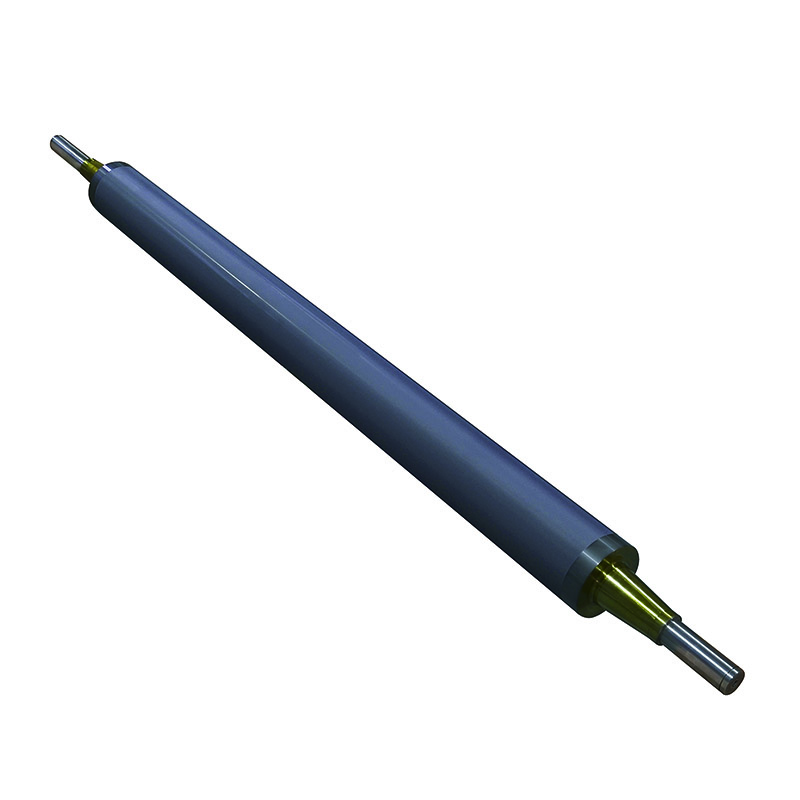

The High-precision Coating Roller is a specialized industrial component engineered for high-performance coating machines, delivering unparalleled accuracy, wear resistance, and ink transfer efficiency. Featuring a dual-layer coating system—nickel-chromium alloy underlayer and special pure chromium oxide (Cr₂O₃) surface layer—this roller is designed to meet the rigorous demands of precision coating processes. Equipped with ALE fiber laser engraving technology, it offers customizable mesh designs, ensuring optimal material transfer and uniform coating results. Ideal for industries requiring consistent, high-quality coatings, the High-precision Coating Roller is a game-changer for flexible packaging, electronic components, and adhesive coating applications.
The roller’s surface layer, made from imported ceramic powder with smaller particles, provides exceptional wear resistance (coating hardness of HV1400) and corrosion resistance. It withstands high temperatures and harsh chemical environments, ensuring long service life even in continuous production. This durability reduces downtime for roller replacement, lowering overall operational costs.
ALE fiber laser engraving creates smooth mesh walls and flat mesh bottoms, maximizing ink transfer capacity while enabling rapid ink dilution and easy cleaning. The 1～2% porosity and up to 2000 L/in mesh count ensure uniform material distribution, eliminating streaks or uneven coating. The smooth mesh structure minimizes ink residue buildup, reducing cleaning time and maintaining consistent performance.
With a bonding strength of 40—60 Mpa, the nickel-chromium alloy underlayer ensures firm adhesion between the base roller and ceramic surface layer. This robust bonding prevents coating peeling or delamination, even under high mechanical stress or temperature fluctuations. The roller’s structural stability guarantees reliable performance over extended periods, safeguarding production quality.
The High-precision Coating Roller offers flexible customization options, including mesh hole shapes (hexagonal, square concave and convex dots, etc.) and arrangement angles (60°, 45°, 30°, etc.). This adaptability allows it to meet the unique requirements of different coating materials and applications, from thin-film electronics to heavy-duty packaging.
Parameter | Specification |
Runout | 0.005～0.01 mm |
Cylindricity | 0.01 mm |
Dynamic Balance Quality Grade | 8g |
Surface Finish (Rz) | 0.01 |
Coating Hardness | HV1400 |
Bonding Strength | 40—60 Mpa |
Porosity | 1～2% |
Maximum Mesh Count | Up to 2000 L/in |
Underlayer Material | Nickel-chromium alloy |
Surface Layer Material | Special pure chromium oxide (Cr₂O₃) |
Mesh Hole Shapes | Hexagonal, square concave and convex dots, customized designs |
Mesh Hole Arrangement Angles | 60°, 45°, 30°, customized requirements |
The roller undergoes ALE fiber laser engraving, a precision technology that creates uniform mesh structures with smooth walls and flat bottoms. This process ensures accurate mesh dimensions and consistent porosity, optimizing ink transfer and coating uniformity. The laser engraving method supports high mesh counts (up to 2000 L/in), making it suitable for ultra-precision coating applications.
The ceramic surface layer is applied via a strict plasma spraying process, ensuring controlled porosity (1～2%), thickness, and uniformity. This process melts imported ceramic powder into fine particles, which adhere tightly to the nickel-chromium underlayer, forming a dense, wear-resistant surface. The plasma spraying technology guarantees consistent coating quality across the entire roller surface.
The nickel-chromium alloy underlayer is specially formulated to enhance bonding between the base roller and ceramic surface. The top layer uses high-quality imported Cr₂O₃ powder with smaller particles, improving wear resistance and extending service life. Each layer is applied under strict quality control, ensuring optimal performance and structural integrity.
Every High-precision Coating Roller undergoes comprehensive testing, including runout and cylindricity measurements, dynamic balance calibration, and bonding strength analysis. Surface finish and mesh dimensions are verified using advanced metrology equipment, ensuring compliance with the highest precision standards.
The High-precision Coating Roller is specifically designed for high-precision coating machines, catering to industries such as:
Flexible packaging printing (plastic films, aluminum foil)
Electronic component coating (circuit boards, sensors)
Adhesive coating (tapes, labels)
Medical device coating (disposable products, implants)
Textile coating (functional fabrics, waterproof materials)
This roller is fully compatible with most high-precision coating machines, including gravure coating machines, slot-die coating machines, and roll-to-roll coating systems. Its customizable dimensions and mesh designs ensure seamless integration with existing production lines, making it an ideal upgrade or replacement component for businesses seeking to improve coating quality and efficiency.
Upgrade your coating process with the High-precision Coating Roller—the ultimate solution for uniform, high-quality results. Contact our experts to Inquire about custom mesh designs, material compatibility, or technical specifications tailored to your application. For quick ordering, click Add to Basket and experience the benefits of wear resistance, precision, and easy maintenance. Take your coating operations to the next level—choose the High-precision Coating Roller for reliable, high-performance results.
