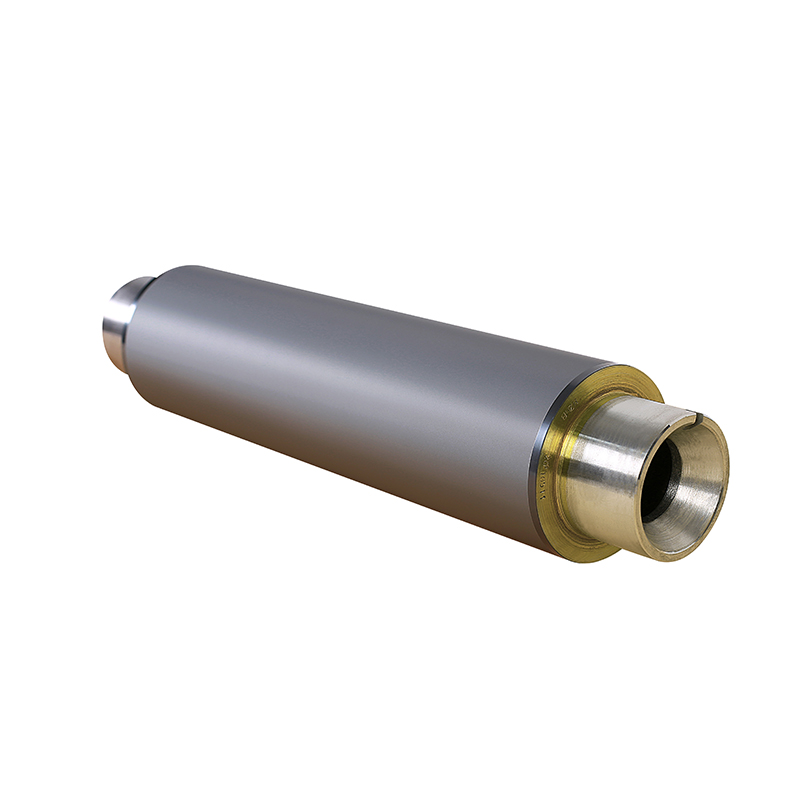

The Ceramic Ink Proofing Roller is a specialized, high-performance component designed exclusively for ink proofing machines. Engineered with premium ceramic materials and precision manufacturing, this roller sets the standard for accuracy, durability, and ink transfer efficiency in proofing applications. Whether used in graphic design studios, printing houses, or ink manufacturing facilities, the Ceramic Ink Proofing Roller ensures that every proof accurately reflects the final print result—helping you avoid costly errors and streamline production. Its wear-resistant construction, customizable mesh design, and strict quality control make it a trusted choice for professionals who demand perfection.
Built with a wear-resistant, corrosion-resistant, and high-temperature resistant ceramic surface, the Ceramic Ink Proofing Roller offers an extended service life that outperforms conventional rollers. The special pure chromium oxide (Cr₂O₃) coating—made from imported ceramic powder with smaller particles—resists wear from repeated ink application and cleaning, reducing the need for frequent replacements. This durability translates to lower maintenance costs and less downtime, allowing you to maximize productivity and minimize operational expenses.
Featuring ALE fiber laser engraving, the Ceramic Ink Proofing Roller delivers exceptional ink transfer capacity with smooth mesh walls and a flat mesh bottom. This design ensures uniform ink distribution, rapid ink dilution, and consistent coverage—critical for producing accurate proofs that match the final print’s color, texture, and clarity. The roller’s easy-to-clean surface also simplifies maintenance, ensuring that residual ink does not affect subsequent proofing jobs, preserving accuracy and reliability.
The Ceramic Ink Proofing Roller adheres to strict precision standards, including a runout of 0.005～0.01 mm, cylindricity of 0.01 mm, and a dynamic balance quality grade of 8g. This level of engineering ensures stable rotation, minimal vibration, and precise ink application—eliminating proofing defects such as uneven ink laydown or streaks. Whether proofing small batches or large runs, the roller’s consistent performance guarantees that every sample accurately represents the intended print result, reducing rework and improving client satisfaction.
Feature | Specification |
Mesh hole shape | hexagonal, square concave and convex dots, and other customized designs |
Mesh hole arrangement angle | 60°, 45°, 30°, and other customized requirements |
Runout | 0.005～0.01 mm |
Cylindricity | 0.01 mm |
Dynamic balance quality grade | 8g |
Surface finish | Rz |
Nickel-chromium alloy underlayer | for better bonding between base roller and ceramic |
Special pure chromium oxide (Cr₂ O₃) surface layer | imported ceramic powder with smaller particles for longer service life |
Porosity | 1～2% (capable of engraving up to 2000 L/in mesh) |
Coating hardness | HV1400 |
Bonding strength | 40—60 Mpa |
The Ceramic Ink Proofing Roller leverages ALE fiber laser engraving to create highly precise, customizable mesh structures. This advanced technology allows for precise control over mesh hole shape, size, and arrangement angle, ensuring that the roller meets the unique ink transfer requirements of different proofing applications. The laser-engraved mesh features smooth walls and a flat bottom, maximizing ink retention and transfer efficiency while minimizing waste.
To achieve a high-quality, durable ceramic layer, the roller undergoes a strict plasma spraying process. This technique involves melting imported ceramic powder at extreme temperatures and depositing it onto a nickel-chromium alloy underlayer, creating a bond strength of 40—60 Mpa. The plasma spraying process ensures uniform porosity (1～2%), thickness, and hardness (HV1400) across the entire roller surface, enhancing wear resistance and ensuring consistent performance in demanding proofing environments.
The Ceramic Ink Proofing Roller is specifically engineered for ink proofing machines, serving as a critical tool in the pre-production phase of printing. It is ideal for testing ink colors, viscosity, and adhesion on various substrates—including paper, cardboard, plastic, and metal—ensuring that the final print meets design specifications. Whether used in commercial printing, packaging design, or ink development, this roller delivers accurate, reliable proofs that reduce production risks and improve workflow efficiency.
Designed for universal compatibility, the Ceramic Ink Proofing Roller integrates seamlessly with most standard ink proofing machines available in the market. Its adaptable design ensures easy installation and replacement, allowing you to upgrade your proofing process without investing in new equipment. Whether you operate a small design studio or a large-scale printing facility, this roller is engineered to meet your proofing needs with consistent, professional results.
Elevate your ink proofing accuracy and efficiency with the Ceramic Ink Proofing Roller—the ultimate tool for professionals who demand precision. Whether you need a standard configuration or a customized mesh design to match your specific proofing requirements, our team is ready to assist. Inquire today to receive a tailored quote, or add to basket to equip your facility with a roller that delivers consistent, reliable proofs every time. Don’t compromise on quality—invest in the Ceramic Ink Proofing Roller and ensure that your pre-production process is as efficient and accurate as possible. Contact us now to learn more and take the first step toward flawless proofing!
