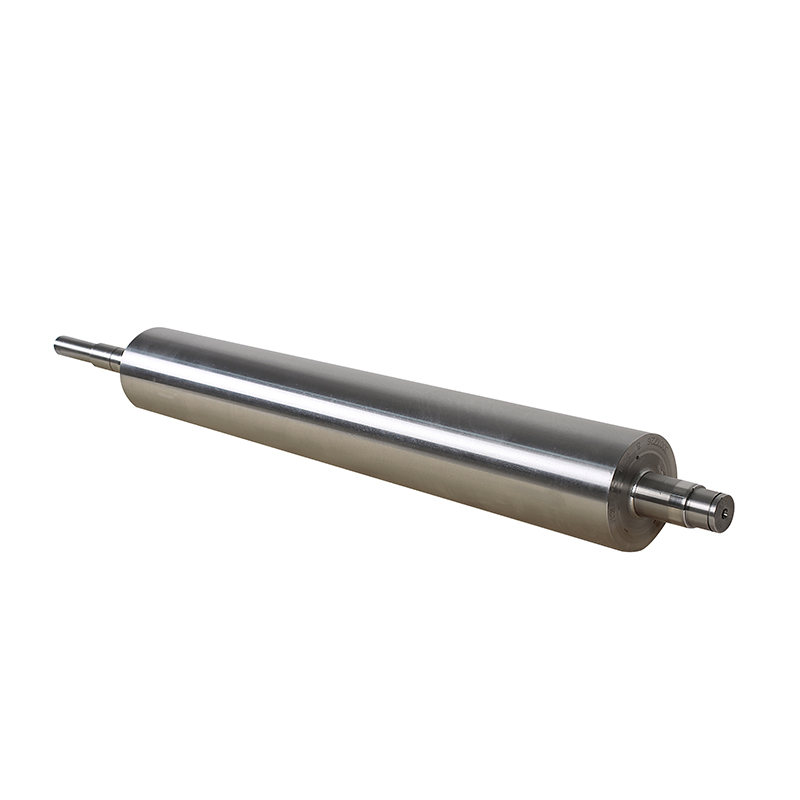

Combining advanced chrome-plating technology with rigorous machining processes, this roller delivers a mirror-like surface finish, exceptional dimensional stability, and versatile functionality for heating and cooling applications. Designed for high-volume production environments, the Chrome-plated Mirror Roller stands out as a reliable core component that enhances process efficiency, reduces downtime, and elevates the quality of end products. Whether integrated into plastic film extrusion lines, textile calendering machines, or metal processing equipment, this roller ensures consistent performance and long-term value.
With a coating hardness of HV0.3 ≥ 1250, the Chrome-plated Mirror Roller offers outstanding wear resistance, capable of withstanding continuous friction and mechanical stress in high-speed production. The high-hardness chrome layer minimizes surface abrasion, reducing maintenance frequency and replacement costs, making it a cost-effective choice for long-term industrial operations.
Precision is at the core of this roller’s design, featuring a runout of 0.005～0.01 mm and cylindricity of 0.01 mm. This ultra-high dimensional accuracy ensures smooth, vibration-free rotation, preventing material unevenness or product defects caused by roller misalignment. The G2.5 dynamic balance quality grade further enhances operational stability, even at high rotational speeds, safeguarding both the roller and the connected equipment.
The Chrome-plated Mirror Roller supports various customized flow channel designs, tailored to meet specific heating or cooling requirements. Whether your process demands uniform temperature distribution for plastic molding or rapid heat dissipation for metal processing, the optimized flow channels ensure efficient thermal transfer, improving process control and product consistency. This versatility makes the roller adaptable to multiple manufacturing scenarios, eliminating the need for specialized rollers for different tasks.
The chrome-plated surface delivers a smooth, mirror-like finish that transfers onto the processed material, enhancing the aesthetic and functional quality of end products. From high-gloss plastic films to polished metal sheets, the roller’s surface integrity ensures minimal material adhesion and uniform processing, reducing waste and improving yield rates.
Parameter | Specification |
Roller Surface Diameter | 100～600 mm |
Roller Surface Length | 100～5000 mm |
Coating Hardness | HV0.3 ≥ 1250 |
Roughness | Dependent on selected coating material properties |
Runout | 0.005～0.01 mm |
Cylindricity | 0.01 mm |
Dynamic Balance Quality Grade | G2.5 |
Flow Channel Designs | Various types for heating and cooling applications |
The Chrome-plated Mirror Roller undergoes a state-of-the-art chrome-plating process, ensuring a uniform, dense coating that adheres tightly to the base roller. Strict control of plating temperature, current density, and plating time eliminates porosity and ensures consistent hardness across the entire roller surface. Post-plating polishing further refines the surface to achieve the signature mirror finish, meeting the highest industrial standards.
Using computer numerical control (CNC) lathes and grinders, the roller is machined to exact dimensional tolerances. Each component undergoes multiple calibration steps, including runout and cylindricity testing, to ensure compliance with precision requirements. Dynamic balance testing is performed using advanced equipment to achieve the G2.5 grade, guaranteeing stable operation even under extreme conditions.
For heating and cooling applications, flow channels are designed using computational fluid dynamics (CFD) simulations to optimize thermal transfer efficiency. The channels are precision-machined to ensure uniform fluid flow, preventing hotspots or cold zones that could compromise process quality. This engineering approach ensures the roller adapts seamlessly to specific temperature control needs.
The Chrome-plated Mirror Roller is widely compatible with industries requiring high-precision surface processing and temperature control, including:
Plastic film and sheet extrusion
Textile calendering and finishing
Metal sheet polishing and coating
Paper and packaging production
Rubber processing
This roller is designed to integrate with a range of industrial machinery, including extrusion lines, calenders, laminators, and coating machines. It supports custom dimensions (100～600 mm diameter, 100～5000 mm length) to fit most standard and specialized equipment, ensuring easy replacement or retrofitting without extensive modifications.
Ready to elevate your production process with the Chrome-plated Mirror Roller’s precision, durability, and versatility? Contact our technical team today to Inquire about custom dimensions, flow channel designs, or compatibility with your equipment. For immediate procurement, click Add to Basket to secure your roller and enjoy reliable performance that drives efficiency and product quality. Don’t compromise on precision—choose the Chrome-plated Mirror Roller for industrial excellence.
