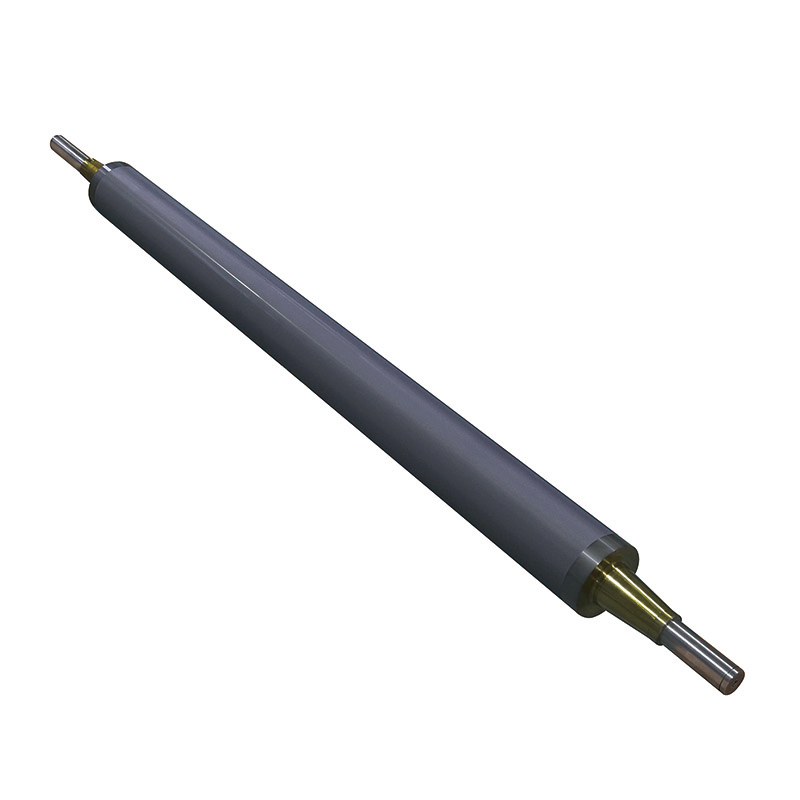

The Ceramic Roller (Mirror & Matte Finish) is a high-performance industrial component designed to replace traditional hard chrome-plated rollers. Engineered with advanced ceramic coating technology, it combines ultra-high hardness and exceptional corrosion resistance, making it a game-changer for industries demanding stable, long-lasting roller performance. Unlike conventional hard chrome rollers with a hardness of HRV800, this ceramic roller boosts hardness to HRV1200 or above while eliminating the limitations of poor corrosion resistance. Available in both mirror and matte surface finishes, it adapts to diverse material processing needs, delivering consistent results across high-speed production lines.
With a coating hardness of HV0.3 ≥ 1250, the ceramic roller outperforms traditional hard chrome-plated rollers by 50% in hardness. This extreme durability resists wear from abrasive materials, reducing replacement frequency and minimizing production downtime—ideal for high-volume industrial applications.
The ceramic coating forms a dense protective layer that repels chemicals, moisture, and corrosive substances. This advantage ensures the roller maintains performance in harsh environments, such as processing acidic or alkaline materials, making it a reliable alternative to corrosion-prone metal rollers.
Boasting a runout of 0.005～0.01 mm and cylindricity of 0.01 mm, the mirror & matte ceramic roller guarantees uniform pressure distribution and smooth rotation. Its G2.5 dynamic balance quality grade eliminates vibration during high-speed operation, protecting production equipment and improving product quality consistency.
Tailored heating and cooling flow channels are available to meet specific temperature control requirements. Whether for heating-sensitive materials or cooling high-temperature processes, the roller’s flow channel optimization enhances process efficiency and product stability.
Parameter | Details |
Roller Surface Diameter | φ100～600 mm |
Roller Surface Length | L100～5000 mm |
Coating Porosity | 1～3% |
Coating Hardness | HV0.3 ≥ 1250 |
Roughness | Depends on the selected coating material |
Runout | 0.005～0.01 mm |
Cylindricity | 0.01 mm |
Dynamic Balance Quality Grade | G2.5 |
The roller uses a vacuum plasma spraying process to apply the ceramic coating, ensuring a porosity of 1～3% for optimal density. This process bonds the ceramic layer tightly to the base material, preventing peeling and ensuring long-term adhesion.
After coating, the roller undergoes multiple rounds of precision grinding using CNC equipment. This step achieves the strict runout and cylindricity standards, guaranteeing consistent surface smoothness for mirror or matte finishes.
Computer-aided design (CAD) and CNC milling are used to create flow channels tailored to heating or cooling needs. The channels are optimized for uniform temperature distribution, ensuring the roller performs reliably in temperature-sensitive processes.
Plastic leather: Ideal for calendering, laminating, and surface finishing processes.
Paper making: Suitable for paper smoothing, coating, and drying lines.
Textiles: Used in fabric calendering and heat-setting equipment.
Packaging printing: Perfect for pressure rollers in printing and laminating machines.
The ceramic roller is compatible with most industrial roller-based equipment, including calenders, laminators, printing presses, and drying machines. It can be customized to fit specific equipment dimensions and process requirements.
To truly understand the transformative impact of this component, we must examine the engineering principles that drive its performance. Each dimension of its design is tailored to resolve specific challenges faced in high-speed, high-stress manufacturing environments.
Core Material & Coating Technology: We utilize an advanced vacuum plasma spraying process that binds the ceramic layer to the substrate at a molecular level. By strictly controlling the coating porosity to a mere 1～3%, we guarantee an exceptionally dense surface that will never peel, flake, or delaminate under pressure, permanently solving the fragility issues of conventional metal rollers.
Ultra-High Hardness & Wear Resistance: Operating at a staggering hardness of HV0.3 ≥ 1250 (HRV1200 or above), this roller is 50% harder than traditional chrome plating. This extreme resistance to abrasion directly translates to a massive reduction in equipment wear, slashing replacement frequency and costly downtime in high-intensity production facilities.
Superior Corrosion Resistance: The high-density ceramic coating acts as an impenetrable natural barrier. It actively repels aggressive chemicals, invasive moisture, and corrosive acids or bases. This makes it the ultimate upgrade for facilities operating in harsh, highly reactive environments where standard metal rollers rapidly degrade.
Precision Engineering & Stable Operation: We let the data speak for itself: a runout tolerance of just 0.005～0.01 mm and a cylindricity of 0.01 mm. Combined with strict G2.5 dynamic balancing, this precision completely eradicates high-speed rotational vibration. The result is absolutely uniform pressure distribution, which directly increases the yield rate and consistency of your final product.
Customizable Flow Channel Designs: Advanced manufacturing requires precise thermal management. We offer bespoke internal heating and cooling flow channels, engineered via CAD and CNC machining. This ensures a perfectly uniform temperature across the entire roller surface, optimizing the processing of heat-sensitive materials and maximizing overall thermodynamic efficiency.
Application & Compatibility: Versatility is built into the design. Available in both flawless mirror and textured matte finishes, these rollers are universally adaptable. They seamlessly integrate into existing calenders, laminators, printing presses, and drying machines across the plastics, leather, paper-making, textile, and packaging industries, custom-machined to match your exact equipment specifications perfectly.
Selecting the right manufacturing partner is just as critical as selecting the right component. We do not merely supply parts; we engineer comprehensive solutions designed to elevate your entire production ecosystem. Our commitment to metallurgical excellence and precision machining ensures that every roller delivered is a masterpiece of industrial reliability.
Uncompromising Quality Control: Every single roller undergoes rigorous laser interferometry and ultrasonic non-destructive testing before it leaves our facility, guaranteeing zero hidden defects and absolute dimensional accuracy.
Deep Engineering Expertise: Our technical team possesses decades of specialized experience in surface engineering and thermodynamics, allowing us to consult on and solve your most complex material processing challenges.
Rapid Customization Turnaround: We understand that downtime is costly. Our streamlined CNC production facility is optimized for rapid prototyping and swift execution of custom, non-standard dimensional requests without sacrificing precision.
End-to-End Technical Support: From initial blueprint analysis to post-installation performance tuning, our engineers provide continuous guidance to ensure your new components integrate flawlessly and operate at peak efficiency.
When integrating advanced ceramic components into existing production architectures, technical clarity is essential. Below are the most frequent inquiries we receive from engineering and procurement teams regarding the operational capabilities of our ceramic rollers.
How does the vacuum plasma spraying process enhance the roller's lifespan compared to standard electroplating?
Vacuum plasma spraying propels ceramic particles at supersonic speeds under a controlled vacuum, creating a mechanical and metallurgical bond with the substrate. This results in a porosity of just 1～3%, making the surface virtually impenetrable and completely eliminating the micro-cracking and flaking associated with standard electroplated chrome.
Can the internal flow channels be adapted for both thermal oil heating and chilled water cooling?
Yes. The internal flow channels are custom-milled using advanced CNC technology based on complex thermodynamic CAD models. We can design single-pass, double-pass, or spiral configurations optimized specifically for either high-temperature thermal oil or high-velocity chilled water, ensuring zero temperature variance across the roller face.
What determines whether I should choose a mirror finish or a matte finish for my application?
The choice depends entirely on your substrate and desired final product texture. A mirror finish is essential for optical-grade plastics, clear laminates, and high-gloss paper where absolute smoothness is required. A matte finish is engineered for applications requiring specific surface tension, grip, or a textured aesthetic, such as synthetic leather or specialized textile calendering.
How does the G2.5 dynamic balance rating impact high-speed printing or laminating processes?
A G2.5 rating means the roller's mass is perfectly distributed around its rotational axis. At high speeds, even microscopic imbalances cause harmonic vibrations that lead to chatter marks on your product and accelerated wear on machine bearings. The G2.5 calibration ensures perfectly silent, vibration-free rotation, guaranteeing flawless pressure application and extending the life of your entire machine.
Is it possible to re-coat or refurbish the ceramic roller after years of intensive use?
Absolutely. One of the major advantages of our ceramic technology is that the core substrate remains protected. Once the ceramic layer eventually wears down after years of heavy use, the roller can be returned to our facility. We will strip the residual coating, re-machine the substrate, and apply a fresh vacuum plasma sprayed layer, restoring the roller to its original factory specifications at a fraction of the cost of a completely new unit.
Ready to upgrade your production with a high-hardness, corrosion-resistant Ceramic Roller (Mirror & Matte Finish)? Contact us via the "Inquire" button to discuss custom specifications, or click "Add to Basket" to secure your order today. Our team of experts is dedicated to providing tailored solutions that enhance your process efficiency and product quality—don’t miss out on this ideal alternative to traditional hard chrome-plated rollers!
