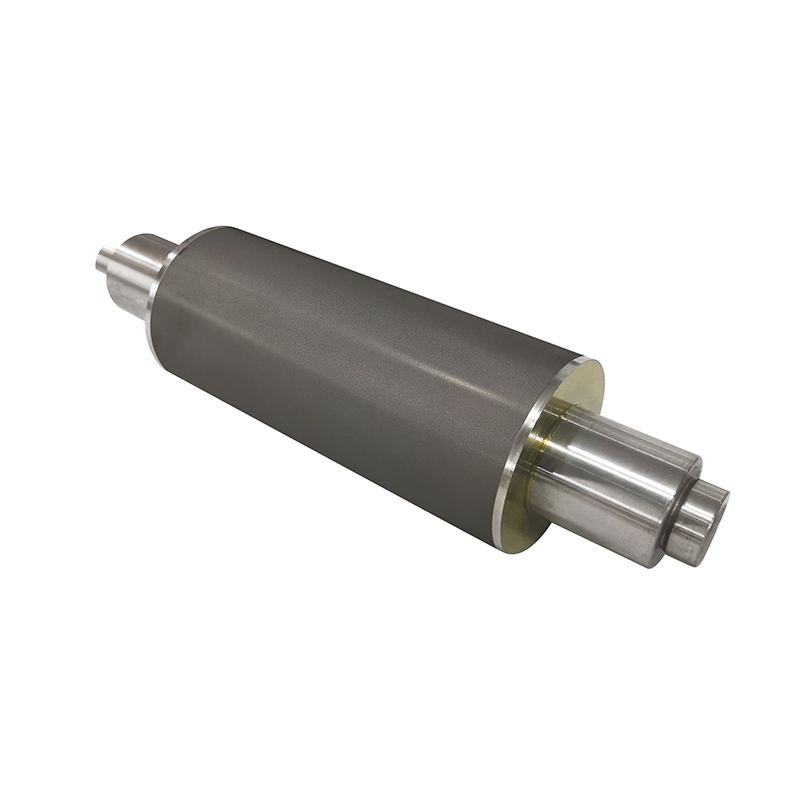

The Woven Label Printing Roller is a high-performance engraving roller engineered specifically for the label printing industry, designed to deliver exceptional results in clothing label printing, tag printing, and ink transfer on label printing machines. Crafted with advanced materials and precision manufacturing, this roller combines durability, efficiency, and versatility to meet the demanding needs of modern printing production lines. Whether you’re producing intricate woven labels or high-volume tags, this roller ensures consistent ink transfer, sharp print quality, and long-term reliability—making it a cornerstone tool for printing businesses aiming to elevate their output and reduce operational costs.
Built with a special pure chromium oxide (Cr₂O₃) surface layer and nickel-chromium alloy underlayer, the Woven Label Printing Roller boasts superior wear resistance, corrosion resistance, and high-temperature resistance. It withstands the harsh conditions of continuous printing operations, including exposure to various inks and high processing temperatures, without compromising performance—eliminating frequent replacements and downtime.
The use of imported ceramic powder with smaller particles enhances the roller’s durability, extending its service life significantly compared to standard printing rollers. This longevity translates to lower replacement costs, reduced maintenance expenses, and higher overall productivity—helping businesses optimize their operational budgets while maintaining consistent output quality.
Equipped with ALE fiber laser engraving technology, the roller features smooth mesh walls, a flat mesh bottom, and large ink transfer capacity. It enables rapid ink dilution, ensuring uniform ink distribution across labels and tags for crisp, clear prints. The precision-engineered mesh structure prevents ink buildup and ensures clean, accurate transfer even for fine details and complex designs.
The roller’s smooth surface and optimized mesh design make cleaning quick and hassle-free. Its resistance to ink adhesion reduces the time and effort required for maintenance, allowing production lines to stay operational with minimal interruptions. This user-friendly feature enhances workflow efficiency and reduces labor costs associated with equipment upkeep.
Specification Category | Details |
Mesh Hole Shape | Hexagonal, square concave and convex dots, or other customized designs |
Mesh Hole Arrangement Angle | 60°, 45°, 30°, or custom requirements |
Runout | 0.005～0.01 mm |
Cylindricity | 0.01 mm |
Dynamic Balance Quality Grade | 8g |
Surface Finish | Rz |
Coating Underlayer | Nickel-chromium alloy (enhances base roller & ceramic bonding) |
Coating Surface Layer | Special pure chromium oxide (Cr₂O₃) (imported fine ceramic powder) |
Porosity | 1～2% (capable of engraving up to 2000 L/in mesh) |
Coating Hardness | HV1400 |
Bonding Strength | 40—60 Mpa |
The Woven Label Printing Roller undergoes precision ALE fiber laser engraving, a state-of-the-art process that ensures consistent mesh hole dimensions, smooth walls, and a flat bottom. This technology enables ultra-fine engraving (up to 2000 L/in mesh), supporting high-resolution printing for detailed labels and tags. The laser engraving process also maximizes ink transfer capacity, ensuring efficient ink usage and uniform coverage.
To guarantee the quality of the ceramic coating, the roller is processed through a strict plasma spraying technique. This process controls the porosity (1～2%), thickness, and uniformity of the ceramic layer, optimizing its performance in ink transfer and durability. The plasma-sprayed ceramic layer adheres tightly to the nickel-chromium alloy underlayer, delivering exceptional bonding strength (40—60 Mpa) and resistance to wear and corrosion.
Clothing Label Printing: Ideal for printing woven labels, brand labels, and size labels on garments, ensuring clear, long-lasting prints that withstand washing and wear.
Tag Printing: Suitable for high-volume tag production, including price tags, product information tags, and promotional tags, with consistent ink transfer for professional results.
Ink Transfer on Label Printing Machines: Compatible with most standard label printing machines, facilitating seamless ink transfer for various label materials (fabric, paper, synthetic substrates).
The Woven Label Printing Roller is designed to integrate with a wide range of label printing equipment, making it a versatile solution for small to large-scale printing facilities. It adapts to different production speeds and ink types, ensuring flexibility for diverse printing needs.
To understand the superior performance of this component, one must look closely at the multidimensional engineering that dictates its construction. Every aspect is tailored to resolve the most pressing challenges in the label manufacturing sector.
Material & Coating Technology: Utilizing imported fine pure chromium oxide (Cr₂O₃) ceramic powder paired with a robust nickel-chromium alloy underlayer. Through strict plasma spraying, it achieves a phenomenal hardness of HV1400 and a bonding strength of 40-60 Mpa, securing industrial-grade quality from the very foundation.
Engraving Precision & Cell Design: Powered by state-of-the-art ALE fiber laser engraving technology, this cylinder supports ultra-high resolutions up to 2000 L/in. Whether you require hexagonal, square, or custom-angled cells, it meets the exact specifications needed for high-fidelity clothing wash labels.
Ink Transfer Performance & Print Quality: The ultra-smooth inner walls and flat cell bottoms deliver exceptional ink carrying and rapid release capabilities. This prevents ink accumulation, ensuring that intricate patterns and tiny text on tags are printed with razor-sharp clarity and uniform color distribution.
Durability & Service Life: Engineered with outstanding resistance to wear, corrosion, and high temperatures. It easily withstands the aggressive nature of various inks and the rigors of continuous, high-intensity printing, drastically reducing wear and replacement frequency to maximize long-term cost efficiency.
Geometric Tolerances & Operational Stability: Machined to punishingly strict tolerances—including a runout of 0.005-0.01mm, cylindricity of 0.01mm, and an 8g dynamic balance. This guarantees whisper-quiet, vibration-free operation on high-speed machines, securing flawless overprinting accuracy.
Equipment Compatibility & Versatility: Purpose-built for the label sector, it offers seamless compatibility with mainstream flexographic, letterpress, and screen label printing machines. It is the ideal medium for transferring ink onto woven fabrics, paper tags, and synthetic substrates.
Maintenance & Cleaning Convenience: The optimized cell structure and the anti-adhesive properties of the smooth ceramic surface make daily cleaning remarkably fast. This significantly slashes machine downtime and labor costs, boosting the overall operational efficiency of your facility.
Sourcing critical machinery components is a decision that impacts your entire production ecosystem. Partnering with a dedicated manufacturer ensures that you are not just purchasing a part, but investing in continuous operational excellence.
Uncompromising Quality Control: Every single cylinder that leaves our facility undergoes rigorous optical and mechanical inspections. We measure cell volumes, verify geometric tolerances, and test coating adhesion to ensure absolute perfection before it reaches your floor.
Tailored Engineering Solutions: We understand that no two production lines are identical. Our engineering team works directly with your technical staff to customize mesh shapes, angles, and line counts, ensuring the final product perfectly matches your specific ink viscosity and substrate requirements.
Direct Manufacturer Advantage: By eliminating intermediaries, we provide premium-grade industrial components at highly competitive price points. This direct relationship also guarantees faster lead times, ensuring your urgent replacement or upgrade needs are met without delay.
Comprehensive Technical Support: From initial consultation regarding cell volume calculations to post-installation maintenance advice, our dedicated specialists provide ongoing guidance to help you maximize the lifespan and performance of your investment.
Navigating the technical specifications of high-precision printing components can be complex. Below are answers to the most common technical inquiries regarding our solutions to help you make an informed procurement decision.
What makes the ALE fiber laser engraving superior for label printing?
ALE fiber laser technology allows for incredibly precise control over the depth, shape, and volume of every single cell. This precision enables engraving up to 2000 L/in, which is essential for the micro-text and intricate logos commonly found on apparel wash labels, ensuring the ink is transferred with high-definition clarity without bleeding.
How does the nickel-chromium underlayer enhance the roller's lifespan?
The nickel-chromium alloy acts as a critical bonding bridge between the steel base and the ceramic surface. It provides exceptional anti-corrosion properties, preventing inks and solvents from penetrating the microscopic pores of the ceramic (1-2% porosity) and oxidizing the base metal, which is the primary cause of coating delamination and premature failure.
Can this cylinder handle highly aggressive or specialty inks?
Absolutely. The surface layer is composed of pure chromium oxide (Cr₂O₃) applied via plasma spraying, achieving a hardness of HV1400. This highly dense, chemically inert surface is exceptionally resistant to the corrosive elements found in specialized fabric inks, UV inks, and harsh cleaning solvents, maintaining its integrity over countless print cycles.
What is the significance of the 0.005～0.01 mm runout tolerance?
Runout refers to the rotational inaccuracy of the cylinder. A strict tolerance of 0.005 to 0.01 mm ensures that the cylinder rotates perfectly true, without any eccentric wobbling. This is vital for maintaining consistent pressure against the printing plate, preventing banding, uneven ink distribution, and ensuring perfect registration in complex multi-color jobs.
How should we maintain the ceramic surface to ensure maximum longevity?
Due to the optimized, smooth cell walls, daily cleaning is highly efficient. We recommend using dedicated, non-abrasive chemical cleaners suited for your specific ink type, followed by a thorough rinse. Regular deep cleaning using ultrasonic or specialized dry baking methods will prevent any microscopic ink residue from hardening in the cell bottoms, maintaining optimal cell volume and transfer rates.
Is it possible to customize the mesh hole arrangement angle?
Yes, we offer complete customization. While standard angles like 60°, 45°, and 30° cover most applications, we can engineer custom arrangement angles and cell shapes (such as hexagonal or square concave/convex dots) to perfectly match your specific ink transfer volume requirements and the unique absorption characteristics of your printing substrates.
Ready to enhance your label printing quality, reduce operational costs, and boost productivity? The Woven Label Printing Roller is your trusted solution for precise, durable, and efficient ink transfer. Contact our team today to inquire about customization options, request a quote, or add this high-performance roller to your basket. Elevate your label production line—don’t miss out on the reliability and performance that industry leaders rely on!
